TR069

TR-069 (Technical Report 069, technically known as CWMP or CPE Wide Area Network Management Protocol) is a communication protocol used for remote management and configuration of user terminal devices such as home gateways, routers, and set-top boxes.

Its core is to enable the Automatic Configuration Server (ACS) on the operator side to remotely manage the Customer Premises Equipment (CPE) in users' homes through IP networks, enabling device activation, configuration, monitoring, and fault diagnosis without the need for on-site services, achieving "zero contact" operation and maintenance.

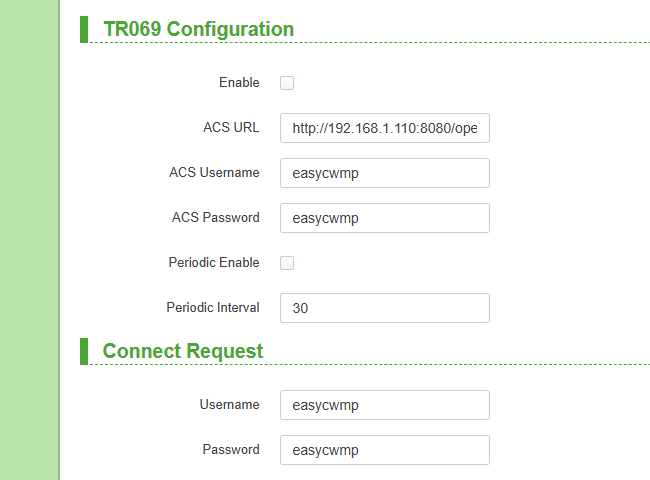

Parameters	Description
Enable	Check to enable TR069. Disabled by default.
ACS URL	URL of ACS Server.Examples:http://192.168.1.110:8080/openacs/acs
ACS Username	Username for authenticating the CPE to the ACS
ACS Password	Password for authenticating the CPE to the ACS
Periodic Enable	Toggle for periodic reporting
Periodic Interval	The time interval between periodic reports. The unit is seconds
Username	Username for authenticating an ACS-initiated connection request
Password	Password for authenticating an ACS-initiated connection request

When you modify the parameters of TR069, you need to click Save&Apply to take effect.
