How to use antenna alignment

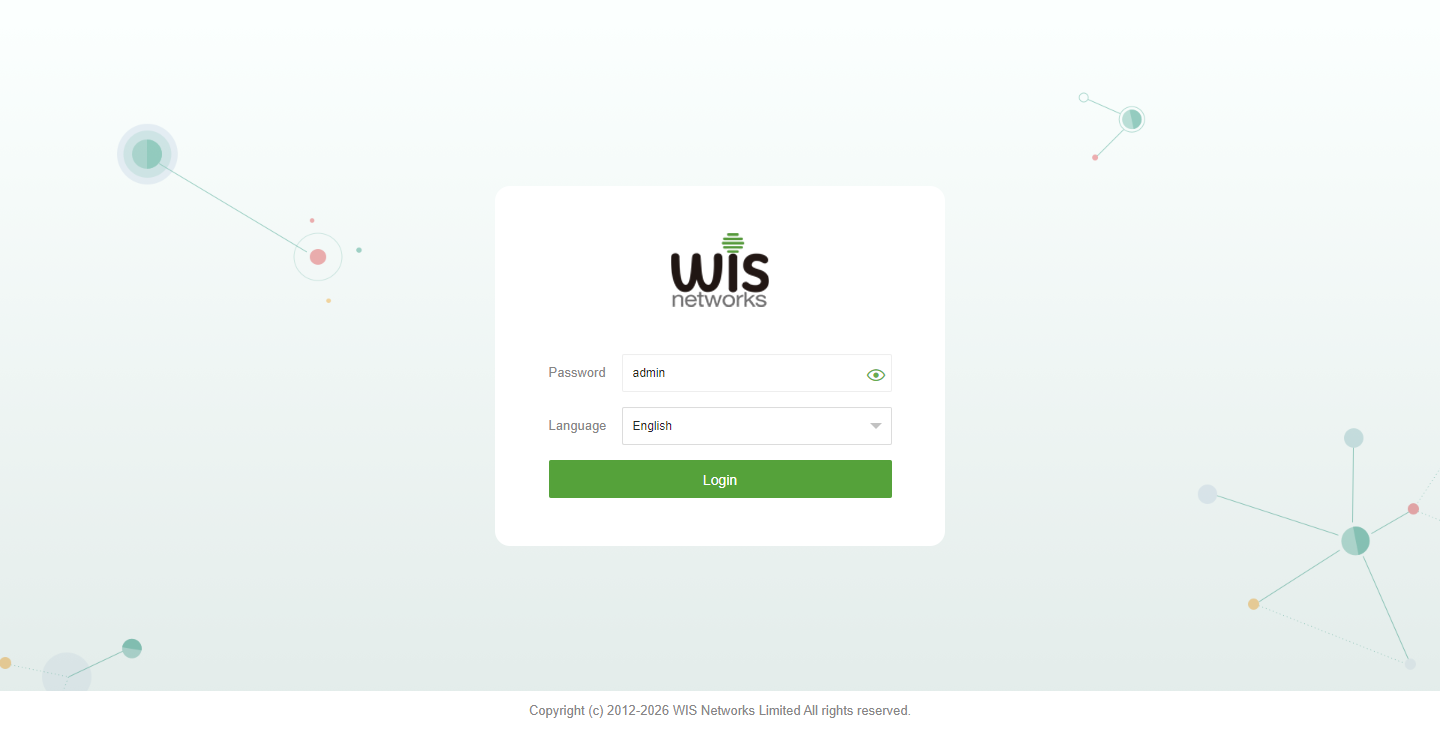

  1. Access the device's management IP address via a web browser: 192.168.1.2

  2. Page login password: admin

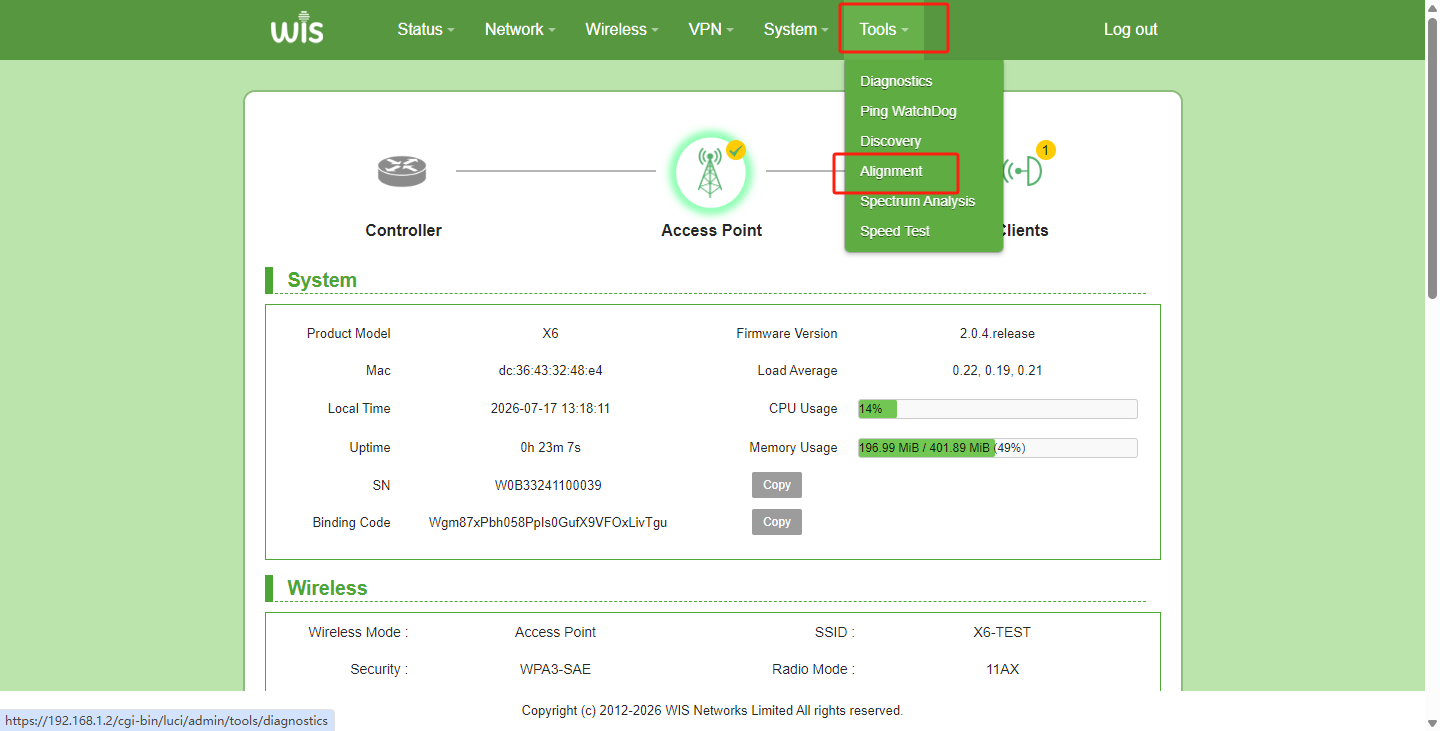

  1. Hover over the "Tools" menu, select and click: Alingnment

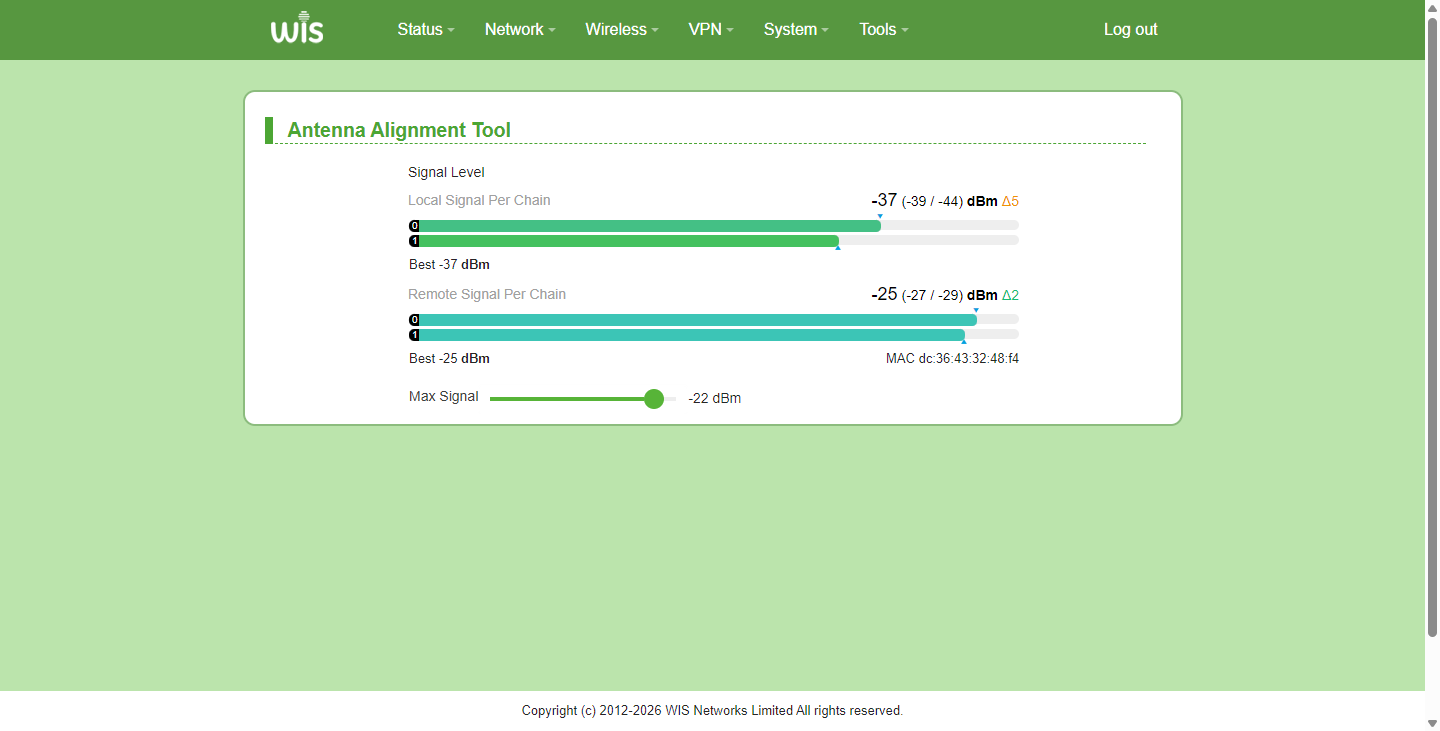

  1. If the two devices are already in a connected relationship, the antenna alignment page will display the local signal and the remote signal. Based on the antenna and transmit power, the actual ideal signal strength value for the two devices is calculated. After adjusting the maximum signal strength slider to this value, it can be used as a reference for signal strength debugging of the device.
