BE5-120

This document is compiled from the pin definition of BE5-120. It describes the signal names, functions, and usage of each GPIO pin on the IPQ5312 platform, for reference during customer secondary development.

The GPIO pins of IPQ5312 are used for eMMC storage, display, touch panel, debug UART, fan control, Ethernet PHY management, PCIe peripherals, and system control. Before reusing any pin, always confirm its current function to avoid conflicts with peripherals already in use by the system.

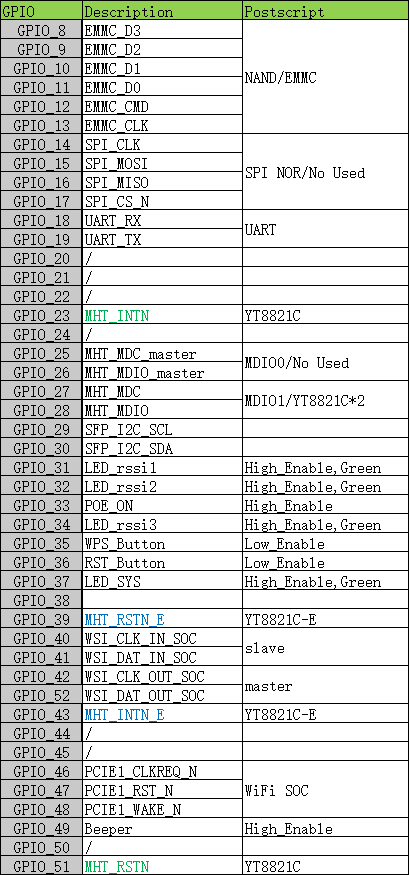

GPIO Pin Assignment Table
